Aligning histology images with MSI data for use in SMEW • smew

SMEW enables integration of histology images for manual region annotation and visualisation of spatial patterns in the context of tissue structure. To align histology images to your MSI data for use in SMEW, you can use the inst/scripts/histology_shiny_app.py script provided in the package. This script allows you to perform manual alignment of histology images to the spatial coordinates of your MSI data, and outputs aligned images that can be used within SMEW.

Data format required for histology image alignment

To use inst/scripts/histology_shiny_app.py for aligning histology images to MSI data, your input data should be organised as follows:

input/MSI_metadata.csv:
- A CSV file where each row represents a pixel or spot.
- Must include columns: pixel_id (unique identifier), Sample (sample name), x (x-coordinate), y (y-coordinate).
- Example columns: pixel_id,Sample,x,y
- This should be the same metadata file used for creating the SMEW app, ensuring that pixel_id matches the first column of the intensity matrix and that Sample names match the subfolder names for histology images.
input/MSI_intensities.csv:
- A CSV file with pixel_id as the first column (matching those in MSI_metadata.csv).
- Each row corresponds to a pixel/spot; columns after pixel_id are intensity values for each peak.
- Example columns: pixel_id,peak1,peak2,...
- This should be the same intensity matrix used for creating the SMEW app.
input/{Sample}/histology.*:
- For each sample, a subfolder named after the sample (matching the Sample column).
- Inside each sample folder, a histology image file (formats: .tiff, .png, .jpg) named histology.tiff, histology.png, or histology.jpg.

Installing dependencies

This alignemnt script is based on the MAGPIE multi-modal alignment framework and you can use the conda environment provided in its GitHub repository to install all the required packages.

Alternatively, you can install the required Python packages using pip:

pip install matplotlib numpy pandas scikit-image shiny

Running the histology alignment app

To run the histology alignment app, navigate to the folder containing this input folder in your terminal. Either copy the script from inst/scripts/histology_shiny_app.py into a new Python file in this folder, or find the location using system.file("scripts/histology_shiny_app.py", package = "smew") in R. Then run the following command in your terminal:

shiny run <identified location>/histology_shiny_app.py

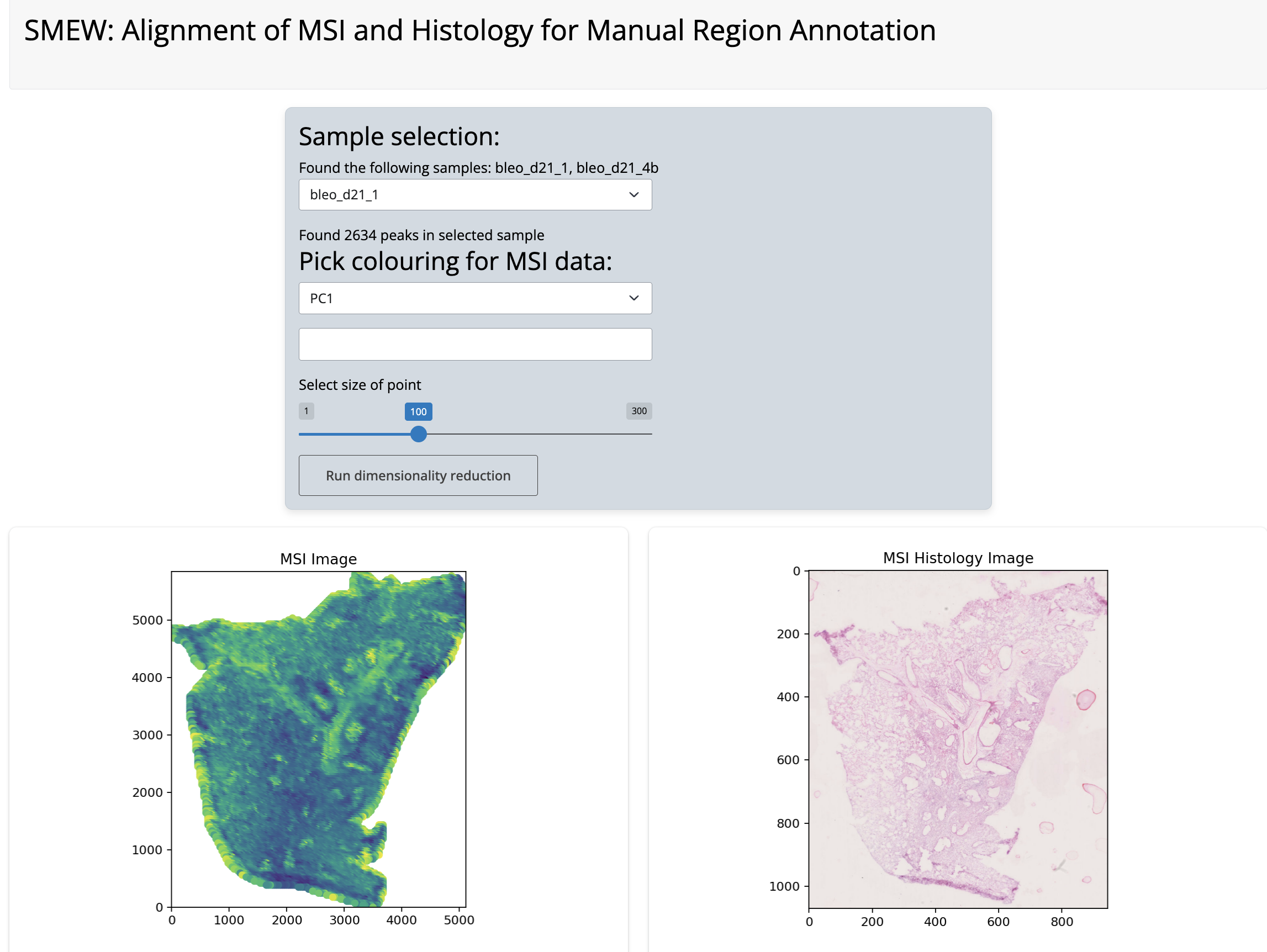

This will launch the Shiny app in your default web browser. The app will automatically detect the samples from your MSI_metadata.csv file and look for corresponding histology images in the input/{Sample}/ subfolders. You can select a sample and choose a dimensionality reduction of peak to view spatially.

Histology alignment app

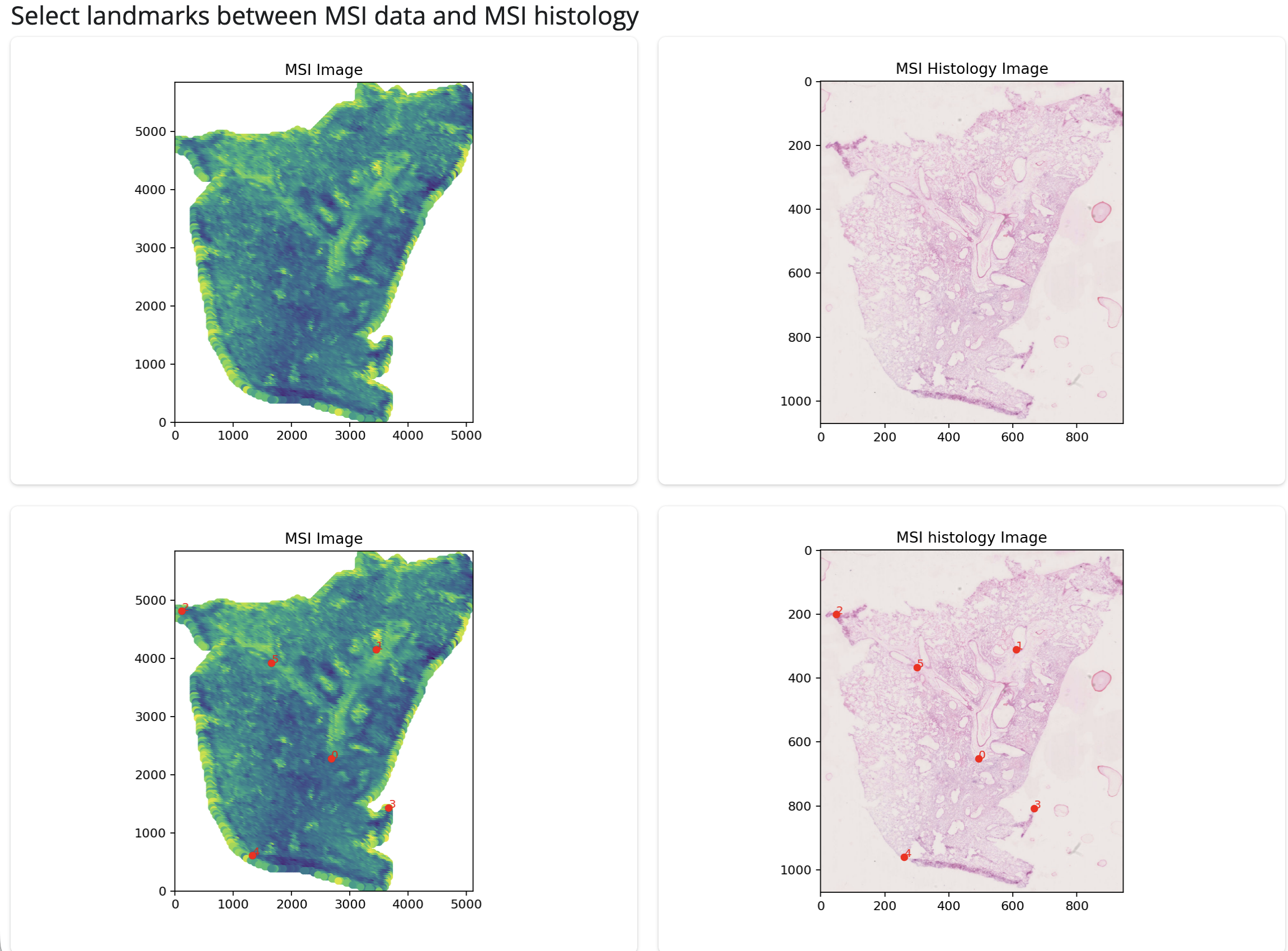

Next, you can select landmarks by clicking on the plot to select corresponding points between the MSI and histology images. There are undo buttons in case of mis-clicks.

Histology landmark identification

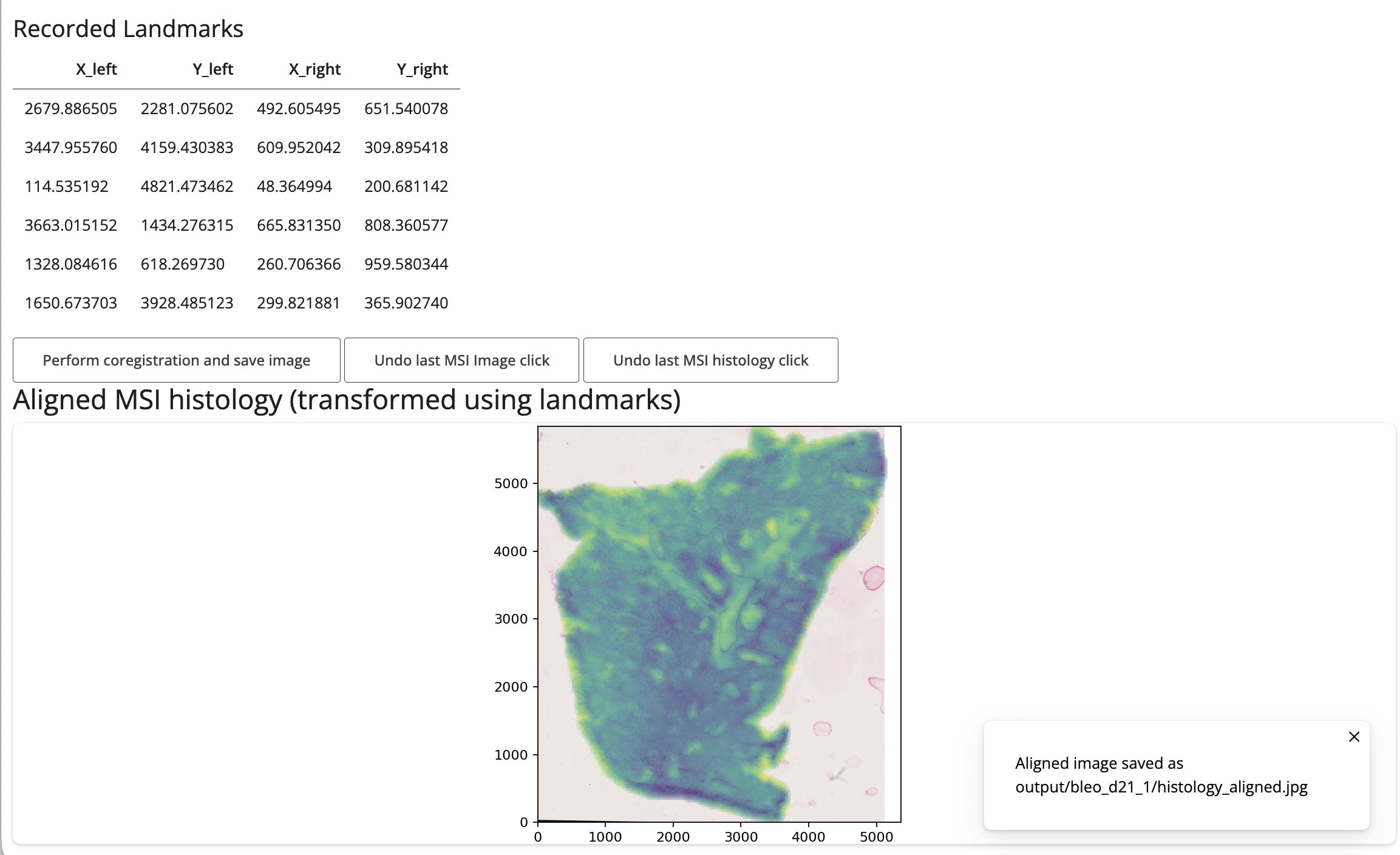

Once you have selected landmarks, you can click the “Perform coregistration and save image” button to align the histology image to the MSI coordinates. The aligned image will be shown and automatically saved in output folder in your working directory, in a folder named after the current sample as histology_aligned.jpg.

Histology overlay

You can then use this folder as the histology_images_dir parameter in create_smew_app() to include the aligned histology images in your SMEW app for region annotation and visualisation.
